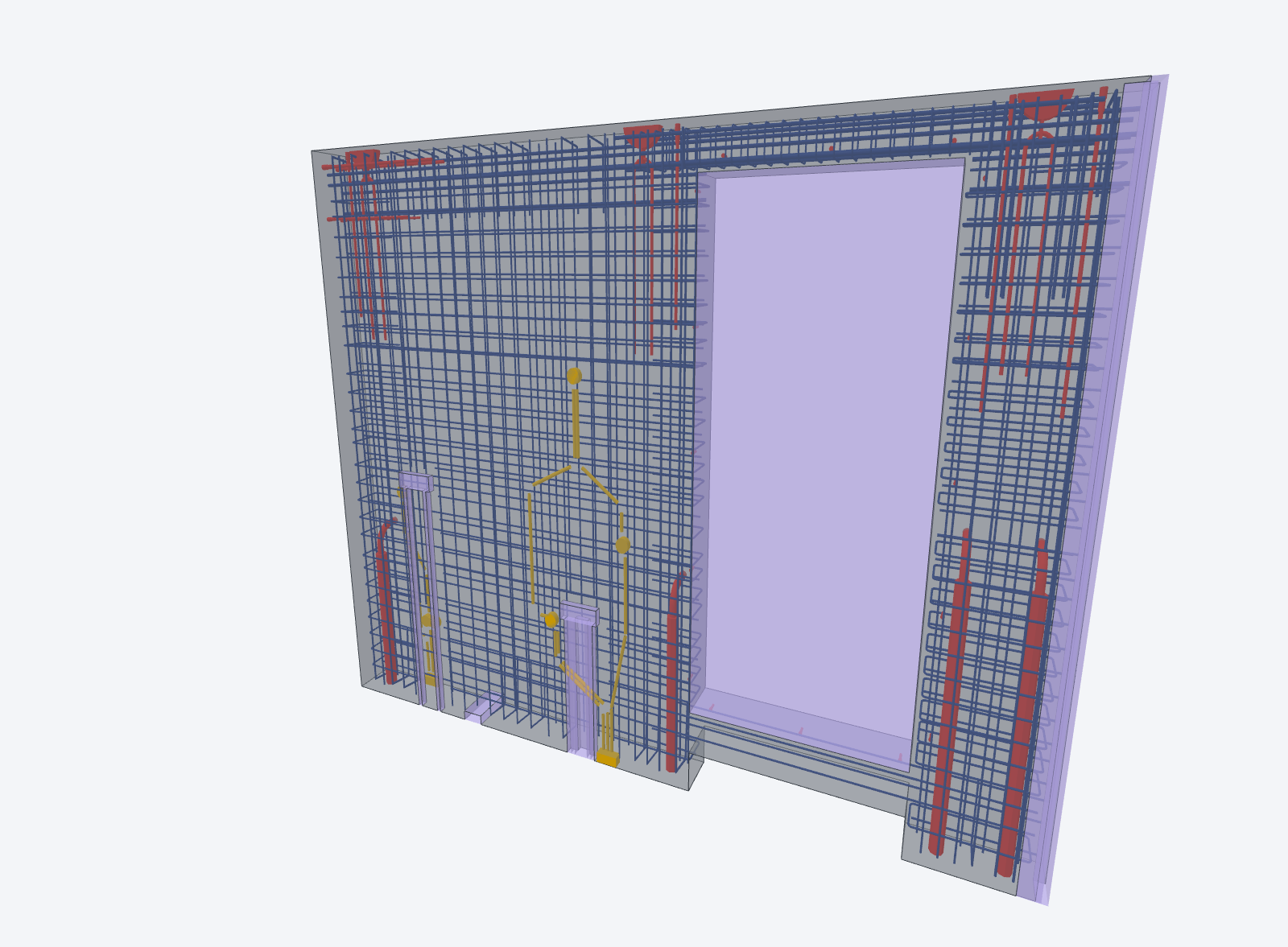

Every precast element in 3D.
View, filter and measure.
A web viewer for precast elements, built for the production floor. No CAD licence and no training needed: open an element and get to work.
- A dedicated viewer for prefab elements
- Online through the browser, or offline as a standalone app for plants on the shop floor
- Tailor-made for every plant, matched to the work stations and the IFC files
- Can connect to the plant's MES system
- Works on tablet too
Built for the way a precast plant works
Filtering per workstation
Rebar, electrical, cast-in items: each position only sees what is mounted or checked there, saved as presets.
See how →Measuring in two clicks
Faces, edges, corner points and parts: the dimension appears in millimetres. Anyone can use it right away.
See how →Production tools
Pallet view lays the element flat like on the tilting table, the rebar module measures centre-to-centre, and more.
See how →Tailor-made per plant
Your logo, your colours, your workstations: every viewer is configured for one factory. Works with any IFC file.

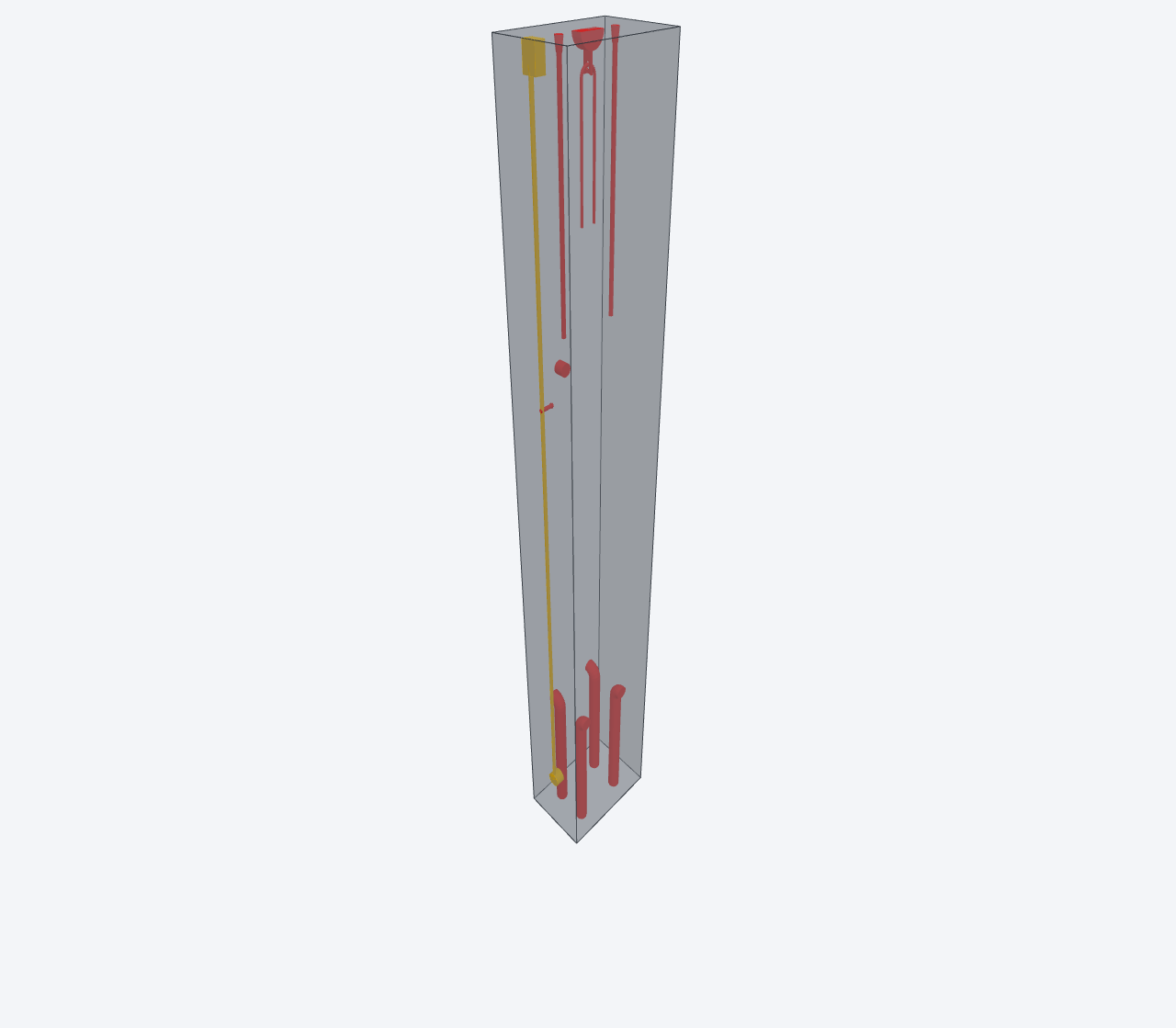

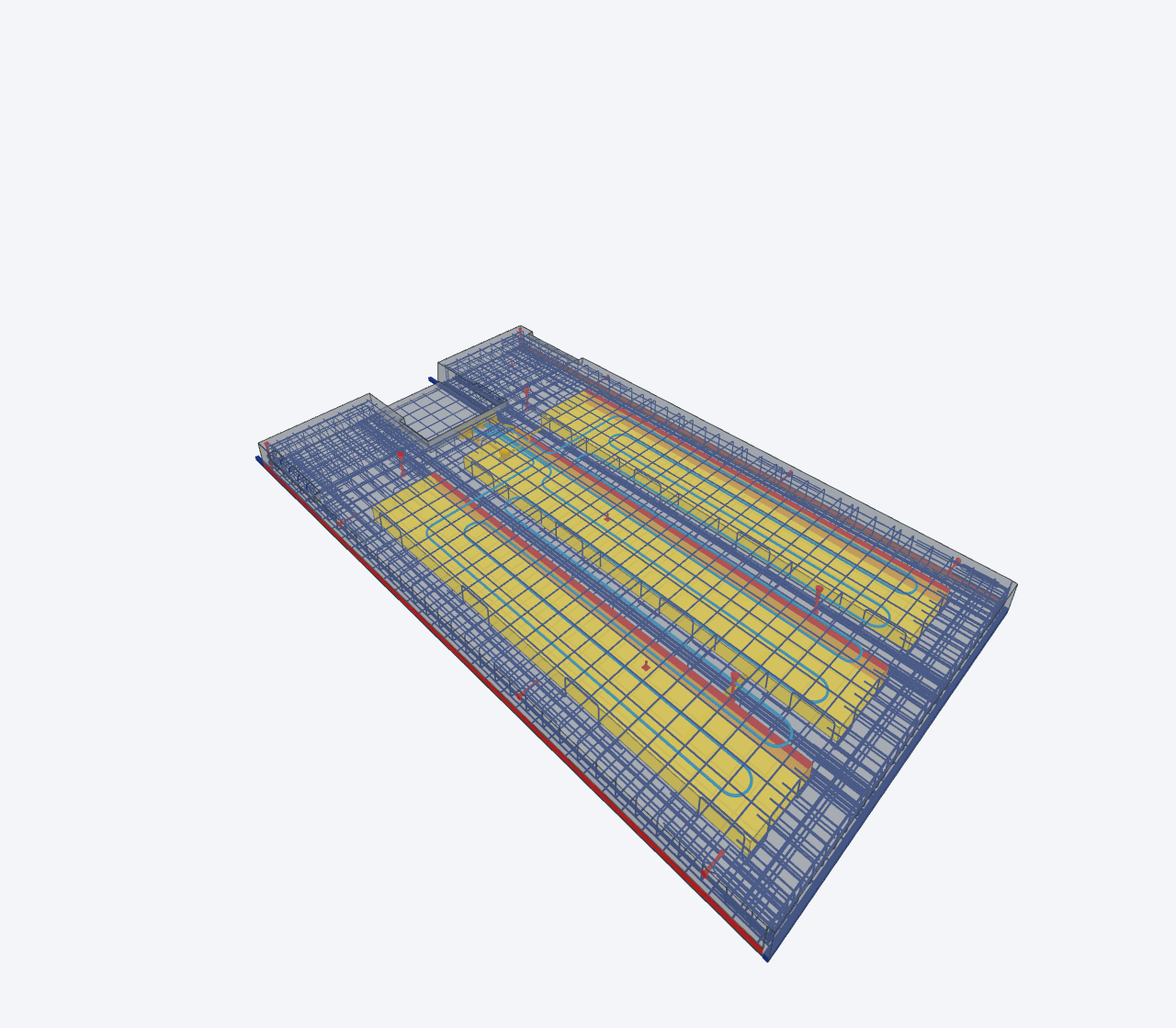

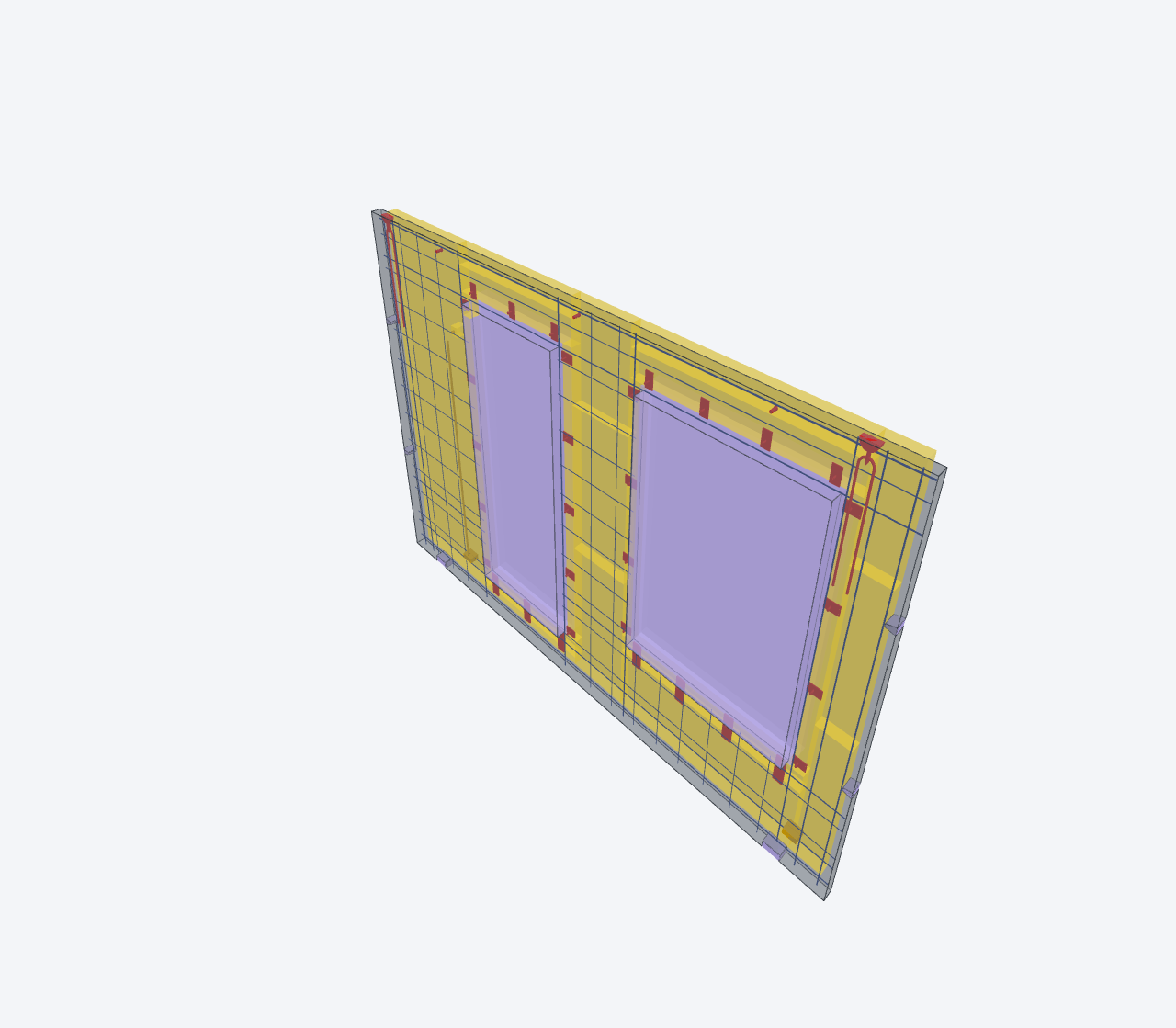

See how →Every precast element
In use at the production line

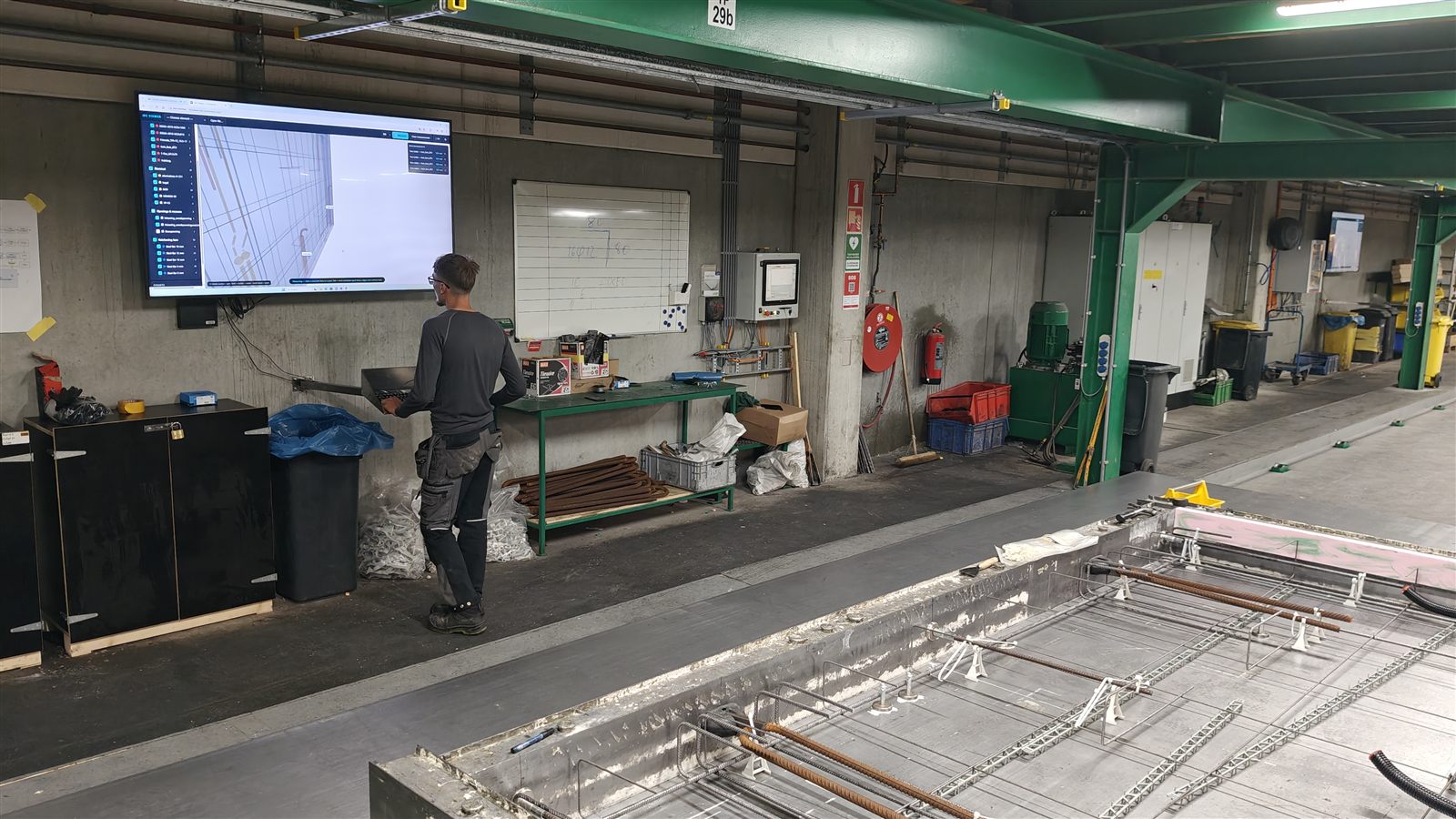

At Voorbij Prefab in Amsterdam the viewer runs right at the line, on a large screen next to the mould. Whenever something is hard to read from the 2D drawing, the operator opens the element in 3D: rotate, zoom in, measure, and carry on producing. Production mistakes are costly in precast concrete: a misplaced cast-in part or a missed opening means drilling or chiseling on site.
Request a quote or trial
Describe what you produce and receive a trial viewer tailored to your plant, with no strings attached.
